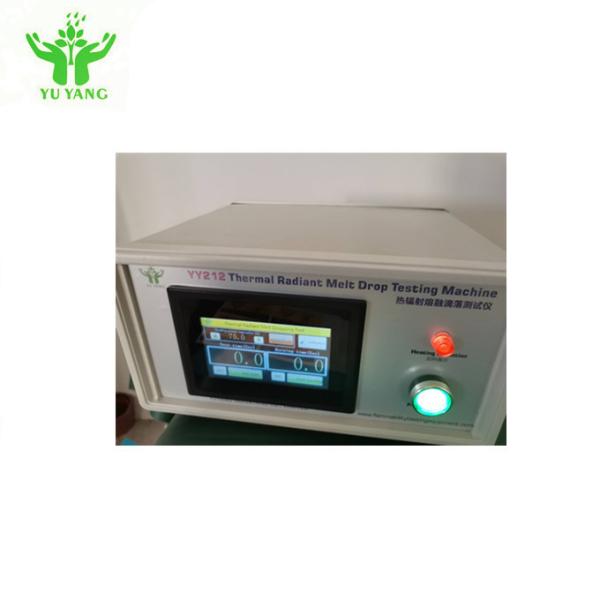

ECE R118 Annex 7 Melt Drop Testing Machine Melt Drop Tester 0~100Kw/m2

ECE R118 Annex 7 Melt Drop Testing Machine Melt Drop Tester 0~100Kw/m2

Description:

Melt Drop Testing Machine Melt Drop Tester Melt Flammability Tester can be used for more than 5mm thickness of rigid and elastic material performance evaluation, and it is developed according to flame test standard NF P92-501.

Standard:

NF P92-505 Dripping test with electrical radiator, used for melting materials
EU 95/28/EC
ECE R118 Annex 7 Test to determine the melting behavior of materials

Application:

Apply to test flexible and thin materials, cellulose for warm flakes, etc.

Features:

1, Stainless steel test cabinet, the inner wall is flame resistant material with transparent viewing window;

2, Stainless steel tubular inlet device, equipped with filtration devices shield for indoor sources;

3, 45° of the test stand, equipped with stainless steel foot instructions to calculate the distance of flame spread;

4, Heat radiation device can provide 30KW / m2 heat flux;

5, The power controller controlling the radiation output, adjustable heat radiation;

6, The heat radiating panel display device operating power value, eliminating frequent calibration procedure;

7, The stainless steel burner can ignite the combustible gas automatically;

8, The imported needle valve can control the upper and lower burner flame height, with a flame height measuring;

9. Sample holder ring is made of stainless steel and the inner diameter is 118mm.

10. Take off the plate inner diameter is 118mm, depth 12mm, an internal plug of cotton.

11. Radiation cone can move up and down.

12.Automatic timing warning of sample ignition.

13. Radiometer imported from the USA which range is 0~100Kw/m2

Specification:

flame test equipment

flammability test apparatus
